Description

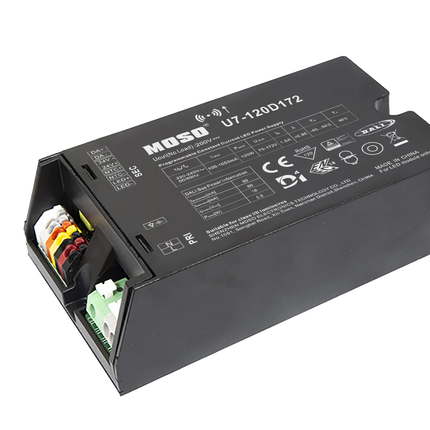

The U7 Series is a cutting-edge DALI-2 & D4i compliant LED driver, engineered for smart, connected lighting systems. With full protocol support, integrated bus power, and advanced programmability, the U7 Series is ideal for modern indoor luminaires requiring high-efficiency performance, data reporting, and seamless connectivity.

• Universal input voltage / Full range: 176~305Vac;
• Constant power design, output current programming adjustable;
• DALI-2 &D4i Certified;
• Adjustable Output Current (AOC) with NFC programmable;
• Over temperature protection via external NTC;
• Constant lumen output(CLO);
• Suitable for luminaires with protection Class I and II;
• Integrated 16Vdc Bus Power Supply Based on DALI-2;
• Auxiliary power supply: 24V/125mA;
• Output and Dimming Signal Isolating;
• Surge protection: 6KV line-line, 10KV line-earth(Class I);
• Complies with Zhaga Interface Specification Book 13;
• Protections: SCP/UVP/OVP/OTP;
• IP20 design for indoor and outdoor applications；
• Suitable for dry / damp / wet locations;
• 7 years warranty.

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
